SERVICES
What We Do
We provide variety of services that meet the demands for all your water related challenges
Geophysical site investigation

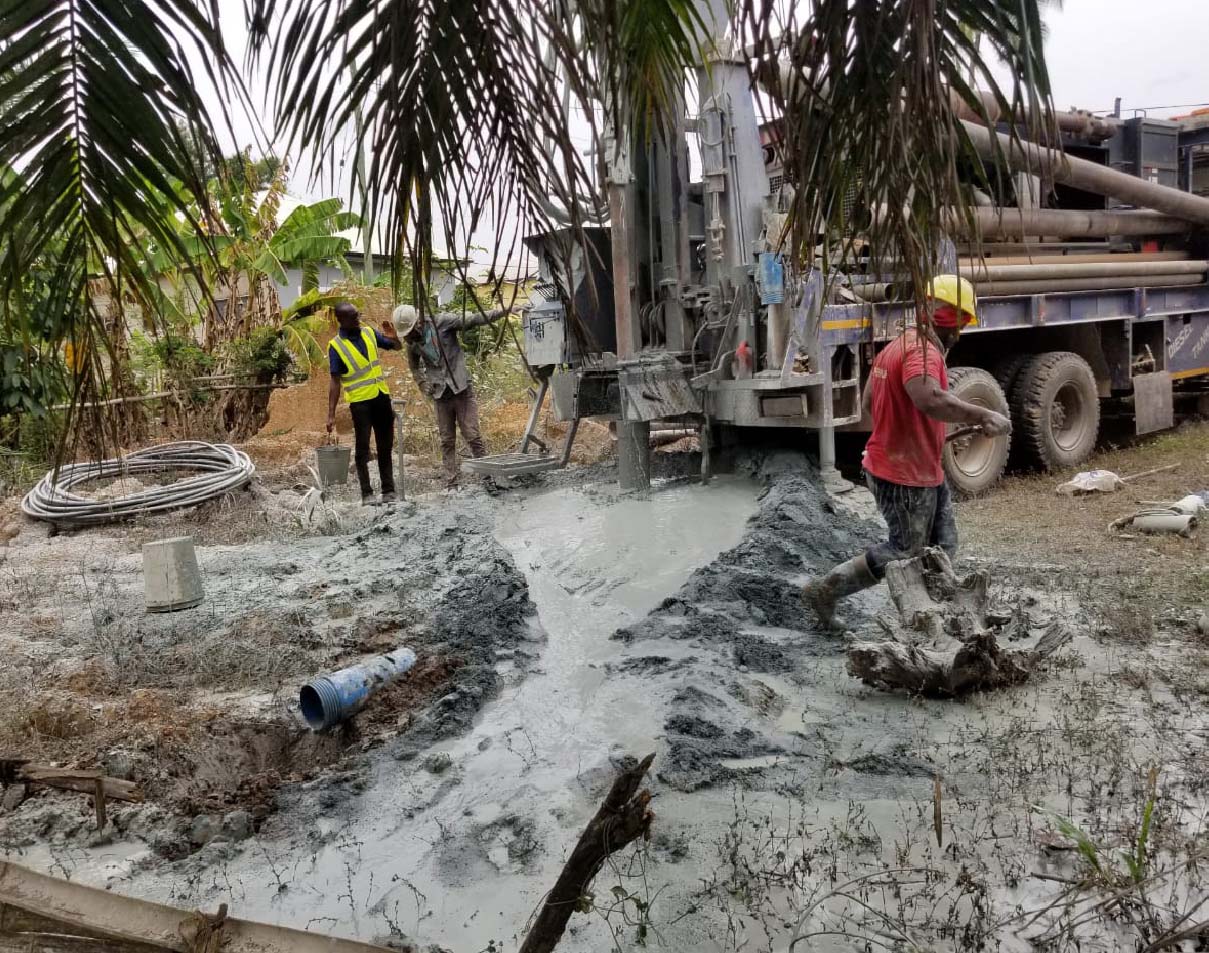

Borehole Drilling
The company employs the use of the state-of-the-art drilling equipment for our clients. This includes drilling through thick overburden and hardrocks. Our team of professionals ensure standard design and construction of the well. Our services include pumping test on old and newly drilled borehole to ascertain the sustainable yield of the borehole. The company also provide services in the redevelopment of existing wells to improve upon their production efficiency.

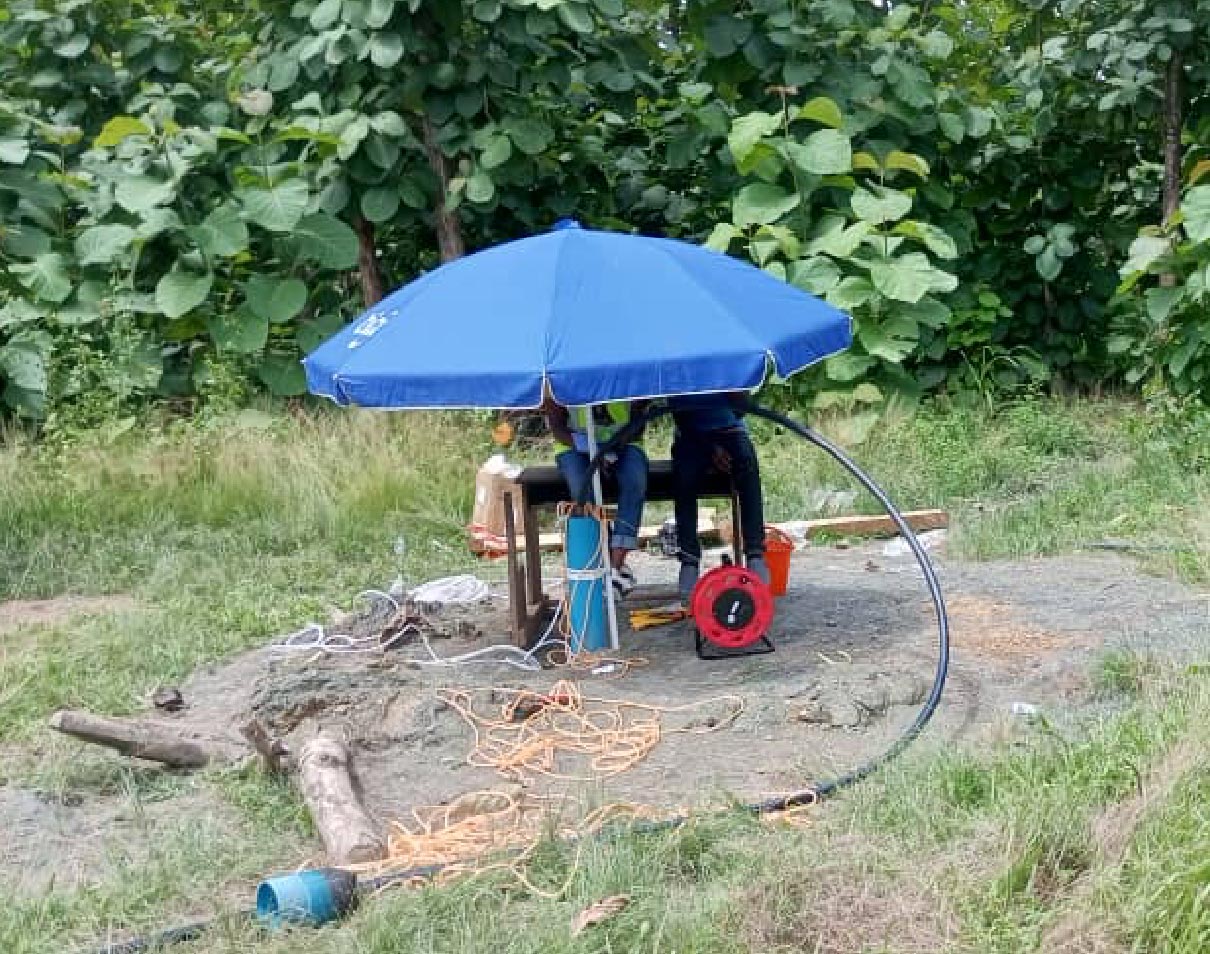

PUMPING TEST
In order to know the real status and performance of the newly drilled or existing boreholes proposed for mechanization or installation of handpump, we carry out pumping-recovery tests are carried out.
The design and length of the pumping tests was determined based on the purpose the borehole is going to serve and other factors.
There exist two types of pumping tests each of them with a clear goal.
One is the step-drawdown pumping test, which aims at knowing the specific capacity and performance of the well or borehole, its construction quality and current status and the optimum discharge rates for the constant pumping test.
The other one is the constant rate pumping test, this has the purpose of determining the hydraulic parameters of the aquifer formation where pumped boreholes are located, which are Transmissivity (T), Storage Coefficient (S), Well Efficiency as well as the Safe Yields of the boreholes. There also exist the recovery test in which data of residual drawdowns is collected at given times once the pump is switched off. They also provide additional information for the aquifer hydraulic parameters.

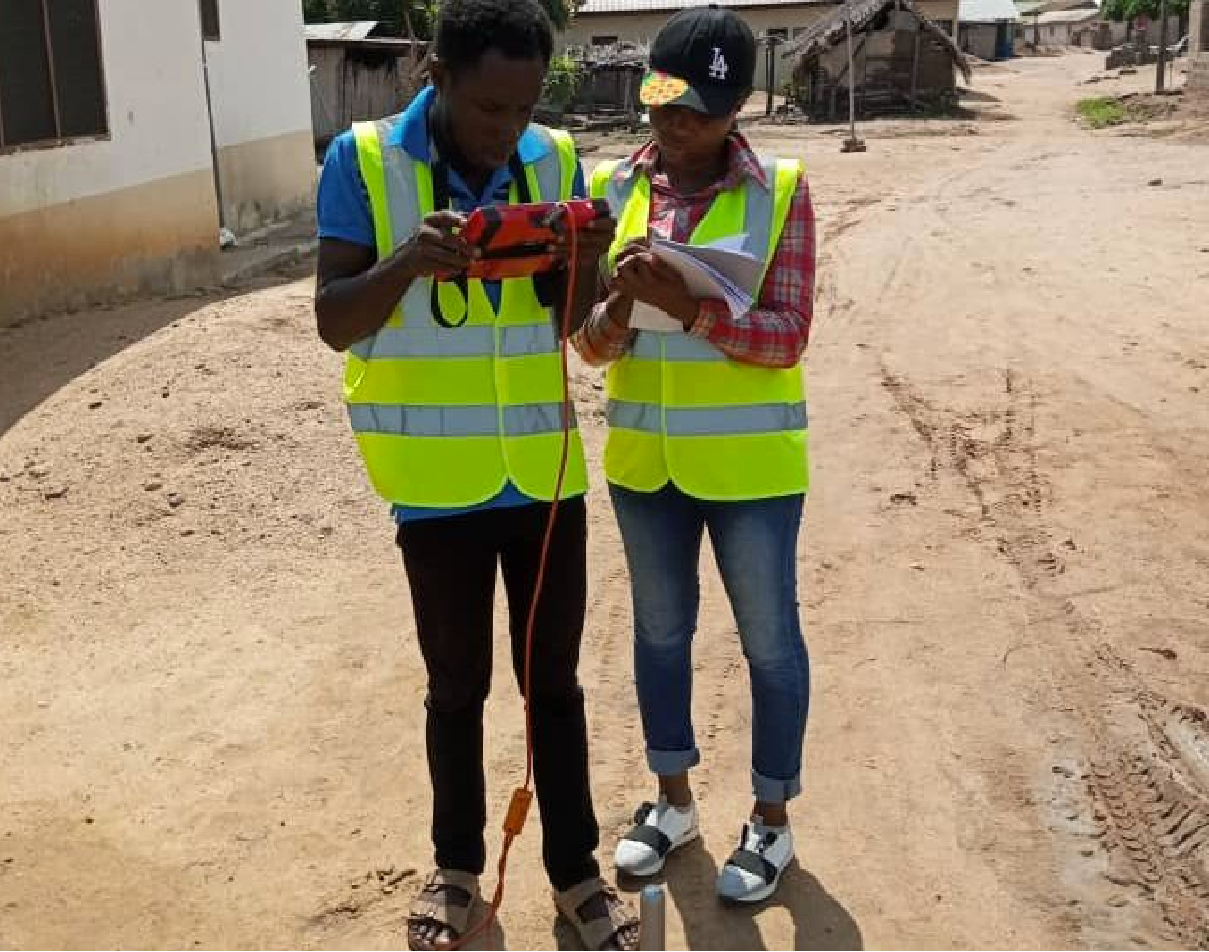

We employ the use of equipment's such as Submersible Pumps, Generators, Volumetric (13 And 15 Litres Buckets), Electrical Water-Level Meters

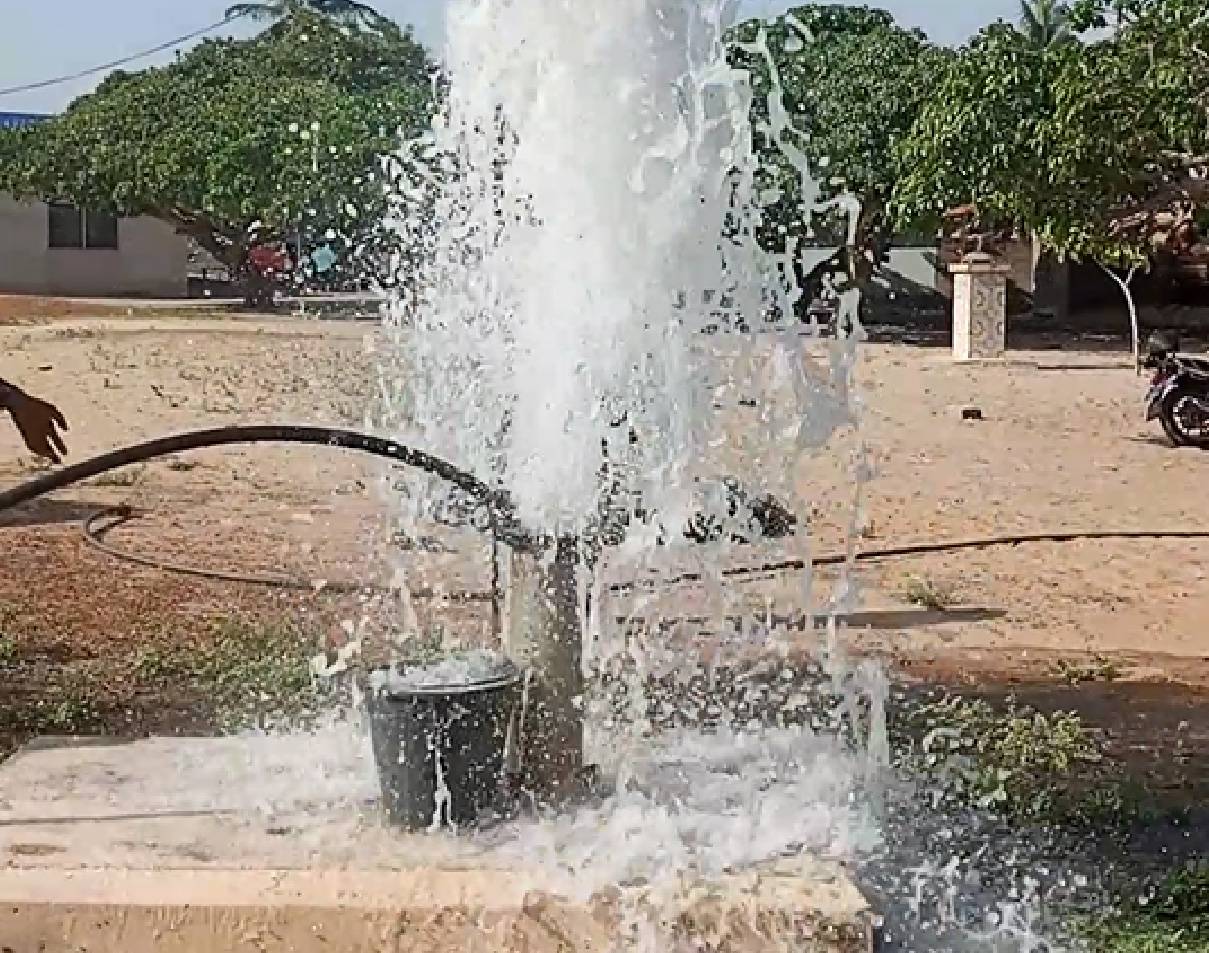

Redevelopment of Existing Boreholes
Borehole development is a process used for cleaning boreholes to improve their for production capacity as well as water quality .It is done to remove any debris, cuttings, or drilling fluid that may have been left in the borehole during the drilling process. We adopt the use of various equipment such air compressors to inject pressurized air into the borehole.

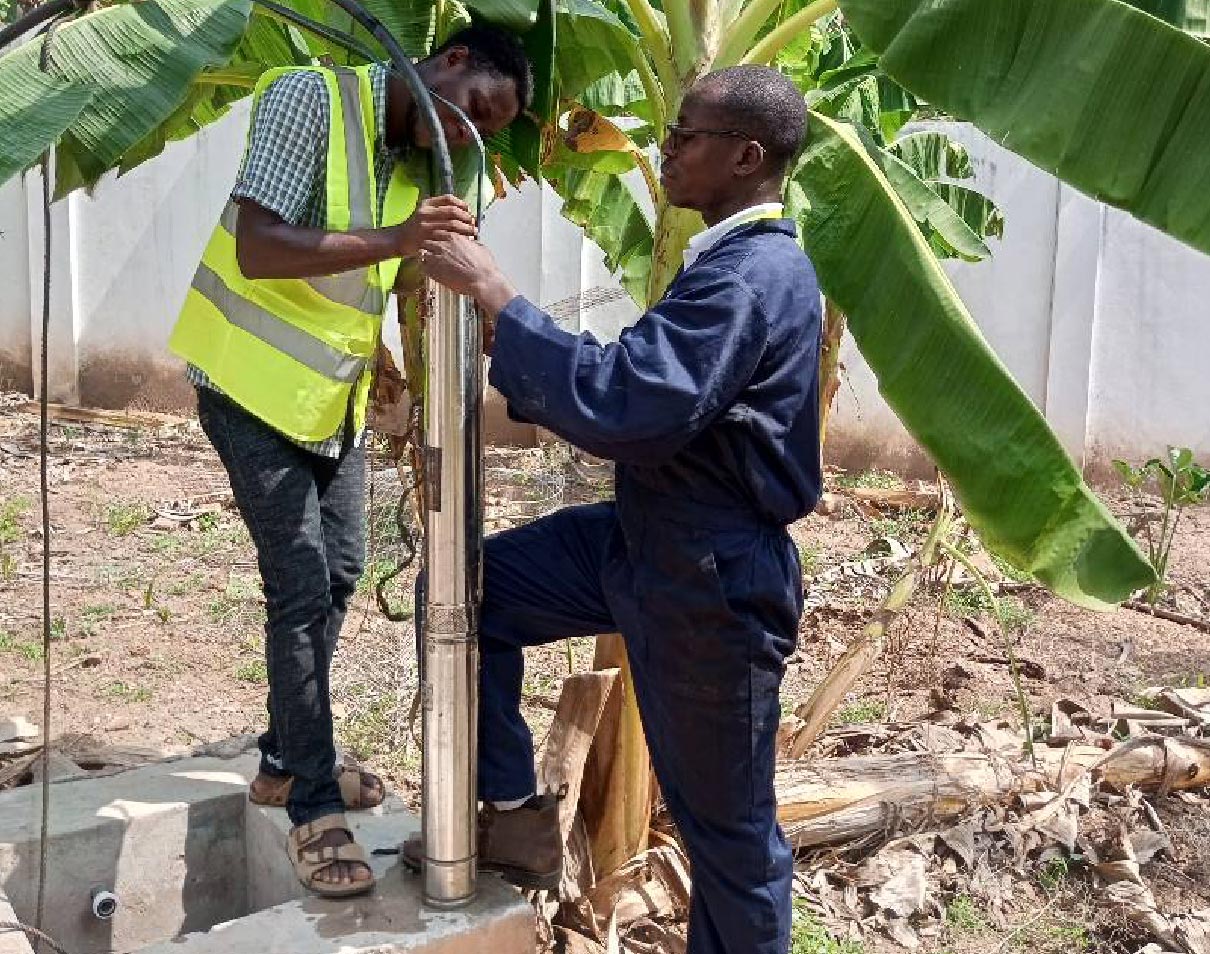

INSTALLATION OF PUMP
Selecting the correct borehole pump is important for sustainability, lower operational cost (low energy consumption and low expenditure on maintenance) and reliable water supply.
Atlantic Hydro-Engineering Services always provide the best technical advice so that you do not have to encounter additional costs or purchase fees due to selecting the wrong borehole pump.
To achieve this, we always inquire from our clients to understand what they are using the borehole pump for that is irrigation, household use, farming, mining, or filling a tank or reservoir – as these will all have a bearing on what pump you need.
Our Technical Team always use the most appropriate software and the standard procedures for the selection of a borehole pump. This process takes into cognizance the installation depth of the pump, geographic location, the amount of water you use regularly and your budget
In addition to that, we also take into consideration the size of the borehole casing. Our technical team will calculate the Total Dynamic Head (TDH) of your installation as well as the safe yield of the borehole which will help to determine which pump to select.
And finally, we check what power supply you have available at home or on-site. Based on these we are able to select the most appropriate pump for our client.
WATER QUALITY MONITORING
With the emergence of several anthropogenic activities which are posing serious threat to the quality our various sources of water, Atlantic-Hydro Engineering Services (AHES) has identified the need to support individuals and cooperate entities to check the quality of the water they consuming and provide the needed assistance to ensure access to safe water at all times. We believe this will go a long way to safeguard public health of our clients.

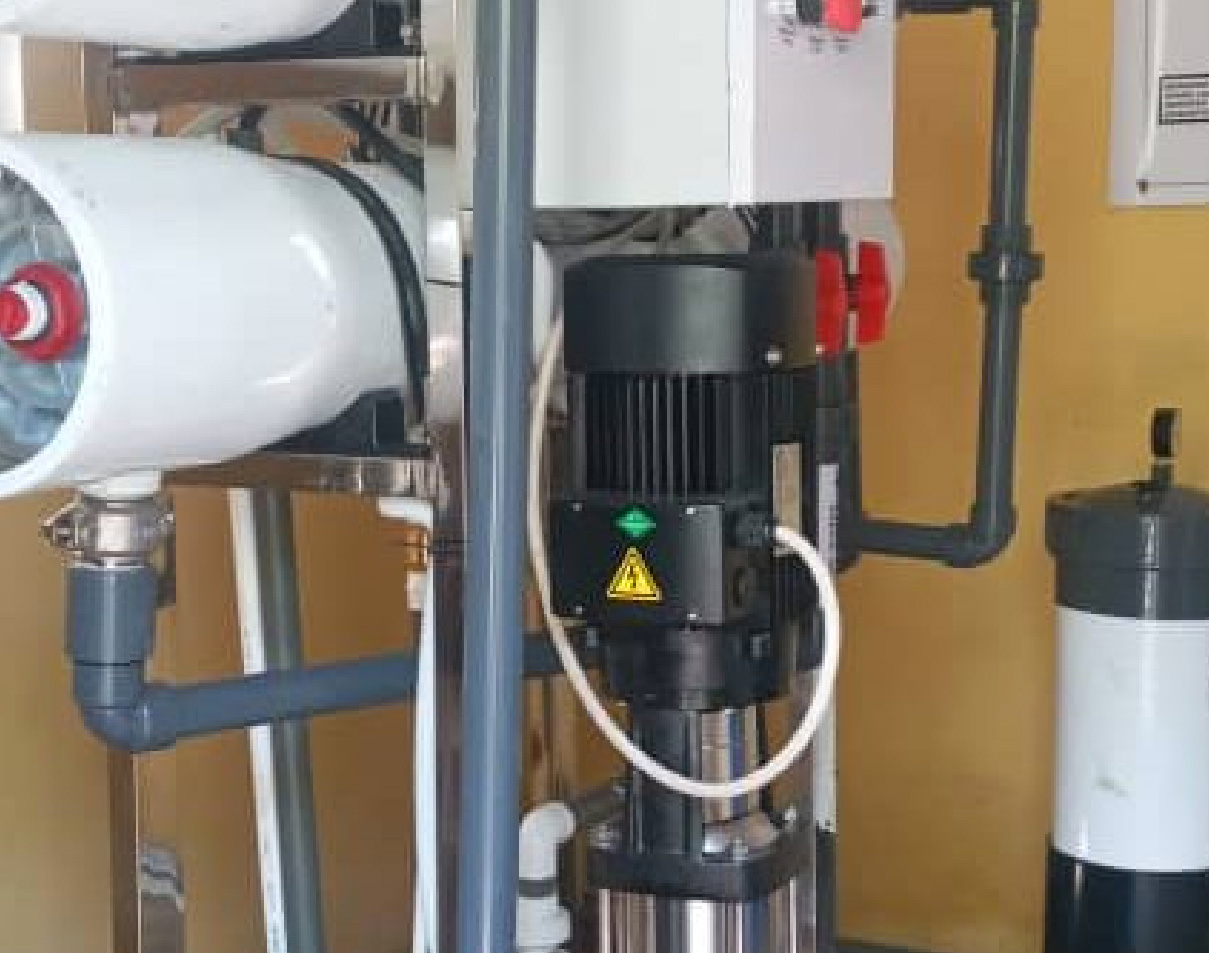

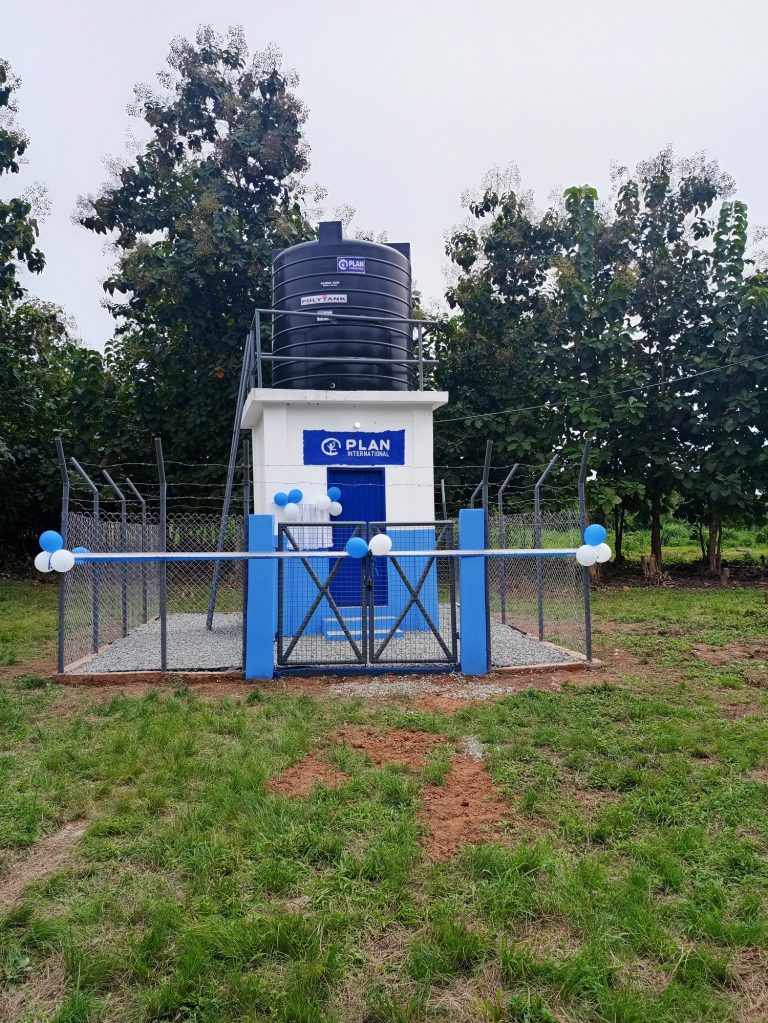

INSTALLATION OF WATER TREATMENT PLANT
In the instances where the water quality does not meet the standards for consumption, the company employ the use of state-of -the-art equipment in treating the water. The technologies employed by our company include the use of the following mechanisms; • Micro Strainers • Gravel filters/Sand Filtration System • Activated carbon Aeration • Membrane processes • Reverse Osmosis • UV water treatment • Chlorination
Design and Construction of pipe water systems
Our Team experts use both primary and secondary data for the design of pipe water Secondary data on population, water demand patterns, per capita water consumption, industrial, commercial and institutional water demands are collected and analysed to determine water demands of our clients.
systems for industries, communities and institutions. The primary sources of data used include the collection and analysis of field data. The collection of the field data is obtained through the use of Oral interview, Reconnaissance Survey, Topographic Survey among several others.
These details are analyzed using computerized software during the desk work stage. The desk work stage involved the processing and analysis of data acquired from the field. The processing and the analysis are carried out using GIS related software, CAD related software and EPANET software. With these three tools, simulations are carried to determine the size of storage required, the diameters of the pipelines, location of various appurtenances among several other components required for the water system.
Reports and design documents are prepared as reference for the construction of the water system.

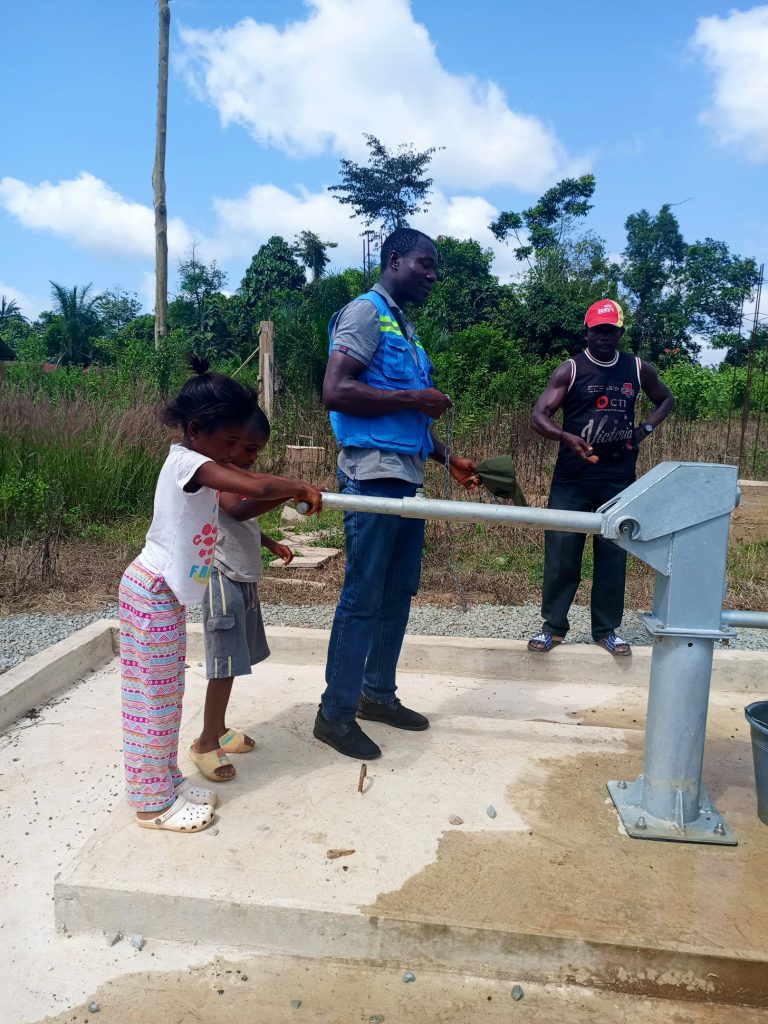

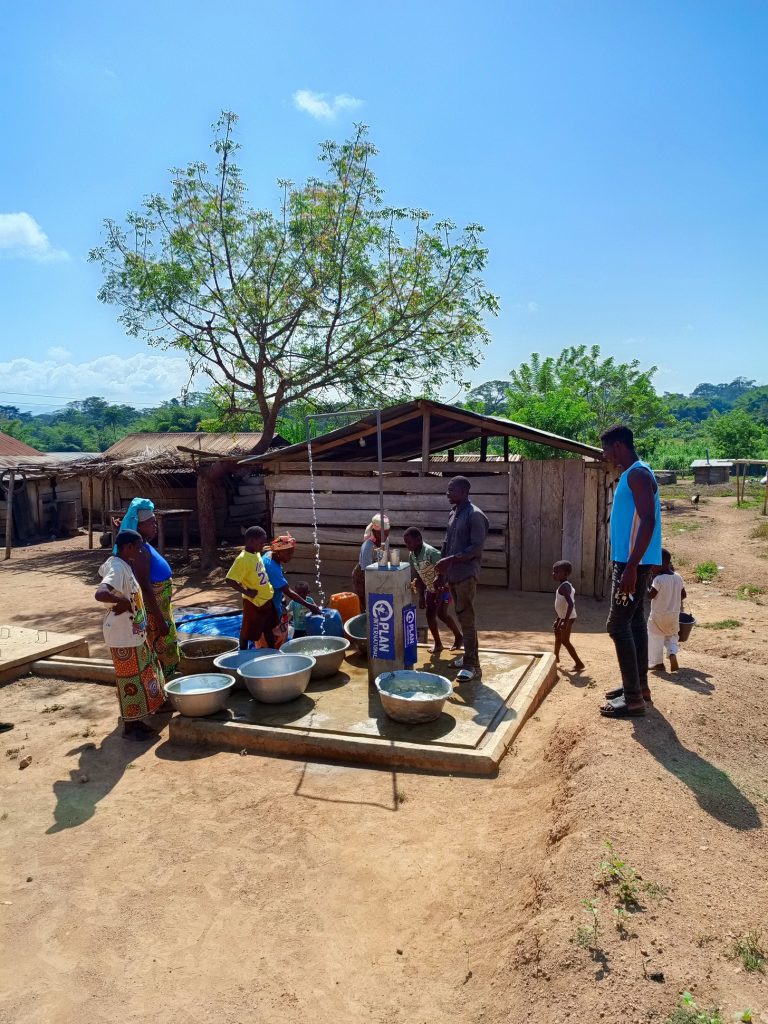

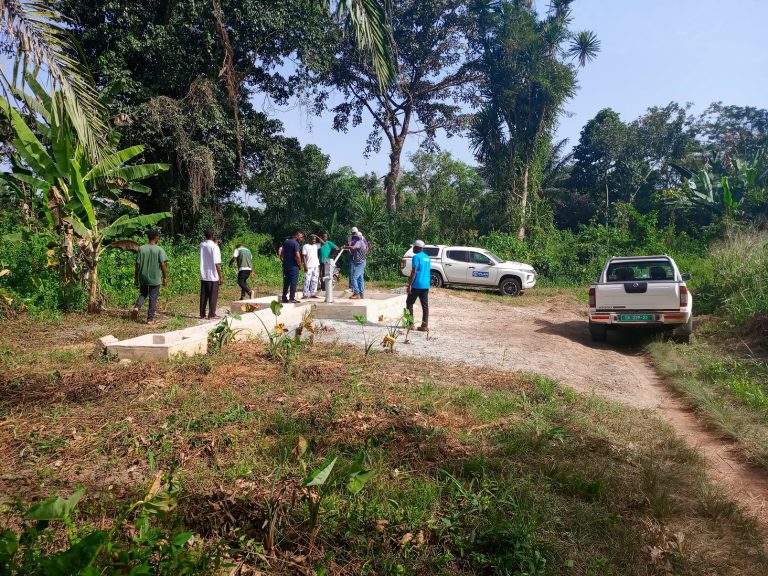

Construction of boreholes fitted with handpumps
Our Team experts use use the most appropriate techniques to determine the safe yield, dynamic water level and all the necessary details to select the most best handpump that meets your requirement. In addition to that, we provide support services for operations and maintenance for our installed facilities

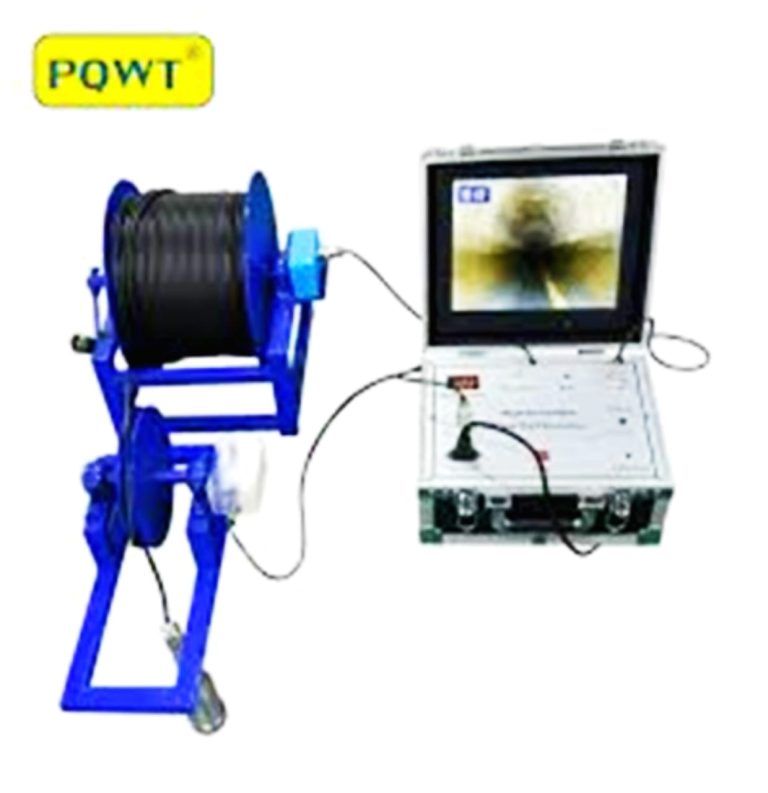

Borehole Camera Inspection
We specialize in providing comprehensive visual assessments of boreholes, giving you the crucial insights needed for informed decision-making and efficient maintenance, and professional inspections that ensure the health and efficiency of your underground systems.
Our detailed reports help you make informed decisions for maintenance. From environmental monitoring to construction projects, we provide reliable insights and recommendations.

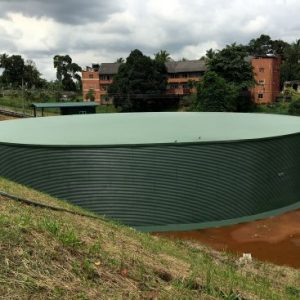

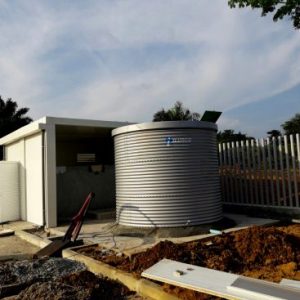

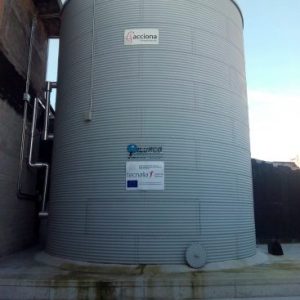

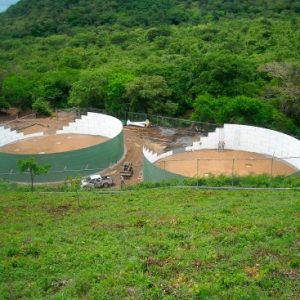

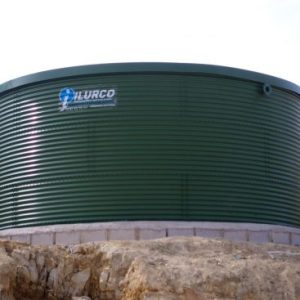

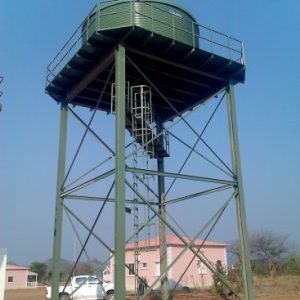

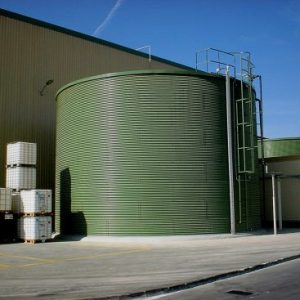

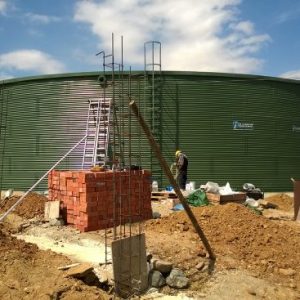

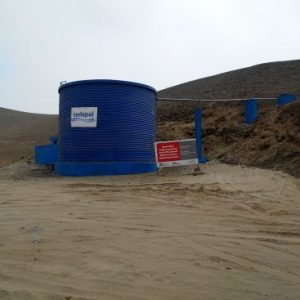

STEEL TANK WATER SYSTEMS
ILURCO’s steel tank water system is the best in the water tank industry, which makes us the brand to trust in steel water storage tanks' design, manufacturing, and installation, and tensile strength. It is elastic enough to allow the movement of fluids, ground settlements, or thermal expansion, durable, and low maintenance.
